LLB metallurgical equipment tire coupling is a high-elastic coupling with good shock absorption buffer and excellent inter-axis offset compensation performance, working temperature - 20 ~ 80 degrees Celsius, transfer torque 10 ~ 20000NM, Suitable for wet, dusty, impact, vibration, positive and negative rotation and frequent starting conditions, and easy to disassemble, because the elastic component is a whole tire body, easy to disassemble and repair, no lubrication, durable reliable.

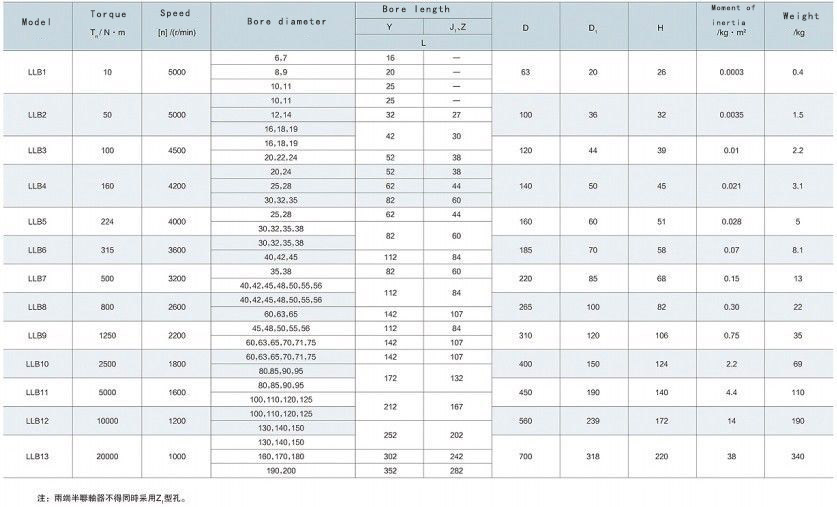

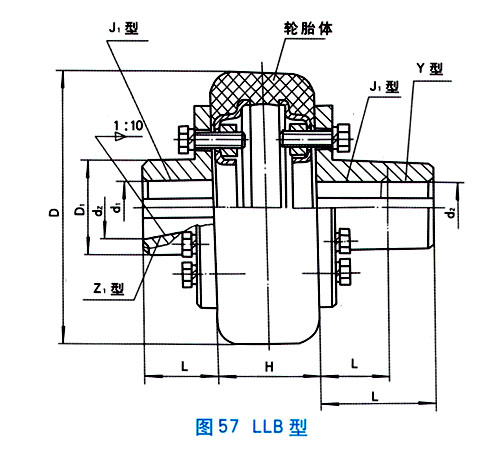

Basic parameters and main dimensions of LLB tire coupling: Specification LLb1-13, nominal torque 10-20000, permissible rotational speed 5000-1000, shaft hole diameter 6-200, shaft hole length 16-352, weight 0.4-340 , material cast steel joint, rubber tire body.
